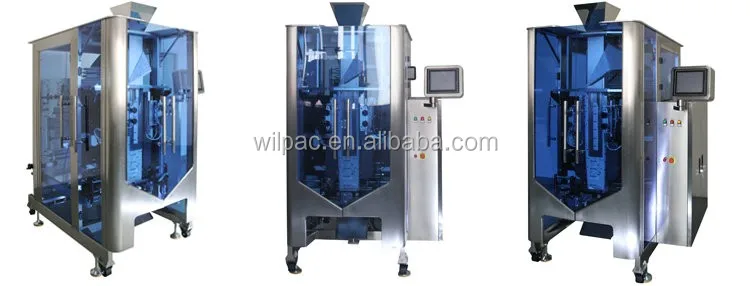

CE Approved Quad Seal Stand Up Bag Coffee Powder Beans Gusset Bag Vertical Packaging Machine

  • 1 - 2 Sets
    $19,500.00
  • 3 - 4 Sets
    $18,300.00
  • >=5 Sets
    $17,800.00
Power:
5KW
Model Number:
WP-HT5235
Samples:
$18,000.00 /Set | 1 Set (Min. Order) | Buy Samples
Shipping:
Support Sea freight · Land freight
Lead Time:
Quantity(Sets) 1 - 1 2 - 3 >3
Est. Time(days) 40 70 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Graphic customization (Min. Order: 1 Sets)

More

Customized packaging (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Type:
Multi-Function Packaging Machine
Packaging Material:
Paper, plastic
Packaging Type:
Bags, Barrel, Cartons, case, Film
Function:
FILLING, Sealing, Wrapping
Applicable Industries:
Manufacturing Plant, Food & Beverage Factory, Food Shop, Food & Beverage Shops
After Warranty Service:
Video technical support, Online support, Field maintenance and repair service
Local Service Location:
Canada, United Kingdom, United States, Germany, Peru, Indonesia, Russia, Malaysia, Argentina
Showroom Location:
Canada, United Kingdom, United States, Germany, Peru, Indonesia, Russia, Argentina, South Korea, Malaysia
Condition:
New
Application:
Commodity, Food, Machinery & Hardware, MEDICAL
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
220
Place of Origin:
Guangdong, China
Brand Name:
Wilpac
Dimension(L*W*H):
1820*1255*1954mm
Certification:
CE Certification
After-sales Service Provided:
Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
Warranty:
1 Year
Key Selling Points:
Easy to Operate
Film Width:
220~520mm
Sealing Width:
5~10mm
Front Surface Width:
60~190mm
Side Surface Width:
40~110mm
Max Film Length:
350mm
Packing Speed:
45bags/min
Film Pulling Driven:
servo motor
Horizontal Driven:
servo motor
Air Pressure:
0.6MPa
Keyword:
quad sealed gusset bag vertical packing machine
Supply Ability
Supply Ability:
50 Set/Sets per Month
Packaging & Delivery
Packaging Details
standard wooden package
Port
Rongqi Port
Lead Time :
Quantity(Sets) 1 - 1 2 - 3 >3
Est. Time(days) 40 70 To be negotiated

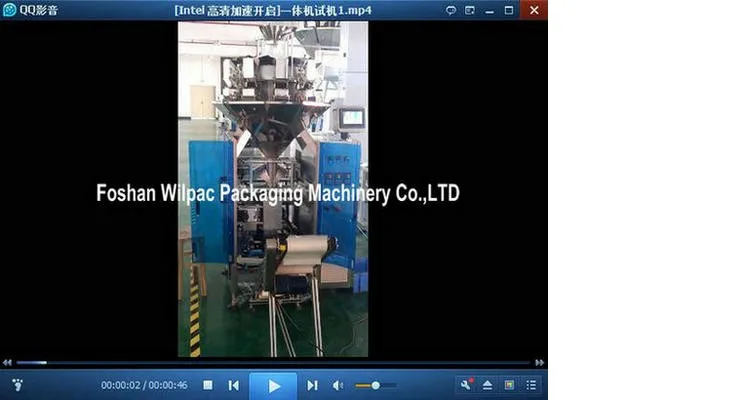

Video Description
Video
Wilpac Testing Video In YouTube For Reference：
（copy the link to see videos in Youtube）
Powder
https://youtu.be/H1ySYo2fFBc
Ice Cube
https://youtu.be/4VmXNVQ5kc0
Hardware
https://youtu.be/pS6ZWtwKrEg
Dried Fruit
https://youtu.be/7O0a56qmTg8
Noodle
https://youtu.be/lzuNJfYwb5o
Canned Filling
https://youtu.be/RK5LC0nX6wM
Product Description

>> Specifications

Model
WP-HT5235
WP-ET5235
Film Width
220~520mm
220~520mm
Sealing Width
5~10mm
5~10mm
Front Surface Width
60~190mm
60~190mm
Side Surface Width
40~110mm
40~110mm
Max Film Length
350mm
350mm
Packing Speed
45bags/min
40bags/min
Fill Pulling Driven
servo motor
servo motor
Horizontal Driven
servo motor
cyliner
Voltage
6KW/220V/50(60)Hz
5KW/220V/50(60)Hz
Air Pressure
0.6MPa
0.6MPa
Air Consumptioin
0.3m³/min
0.7m³/min
Machine Dimension
L*W*H=1820*1255*1954mm
L*W*H=1820*1255*1954MM
Machine Weight
700KG
680KG

>> Feature

* Attractive stading bag style to satisfy the market demand,

* It completes bagging sealing, bottom flat automatically,

* PLC pneumatic system for vertical and horizontal sealing,

* Easy to operate, low maintenance,

* Applicable bag type: the machine can make pillow-type bag and standing bag according to customer's request.

>> Application
* Applicable Bag Type: seal type bag.
* Applicable Film Materials: a variety of laminated films, single-layer PE film (Film Thickness Range: 0.03~0.15mm).
* Applicable Packing Materials: granule, food & non-foods, suach as potato chips, candy, milk powder, frozen food, pet food, MSG, oatmeal, hardware, juice and souce, etc.

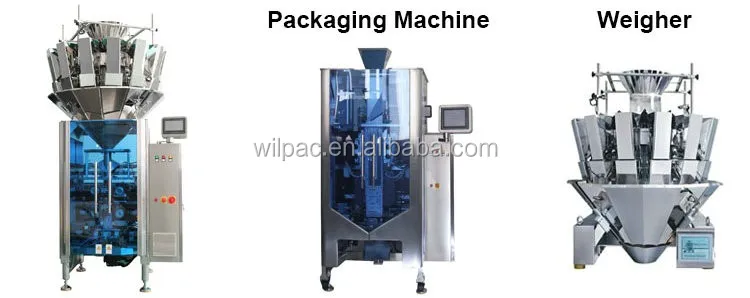

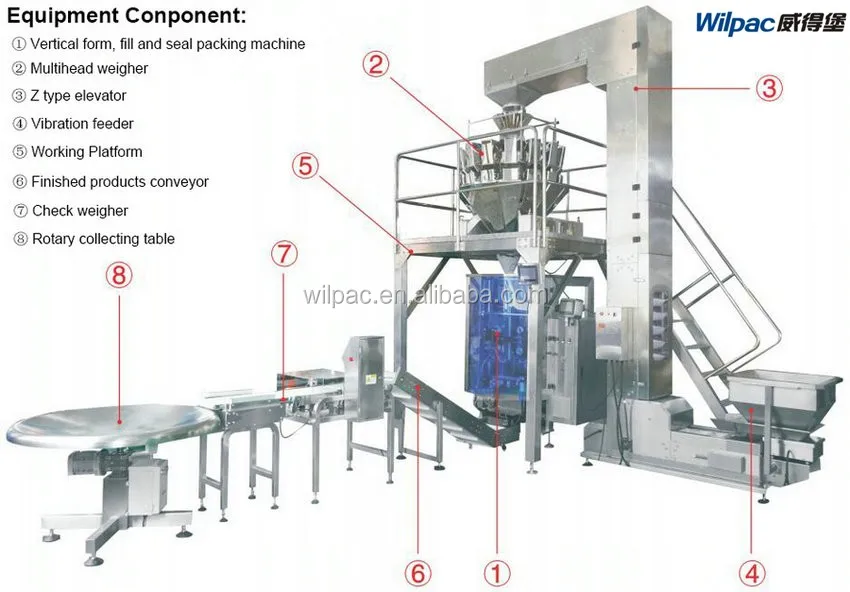

>> Weighing & Packing Machinery

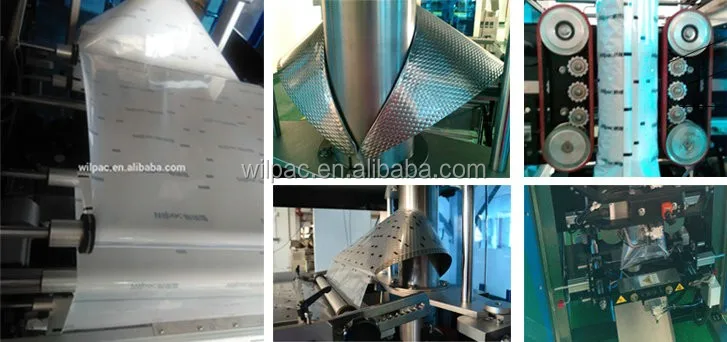

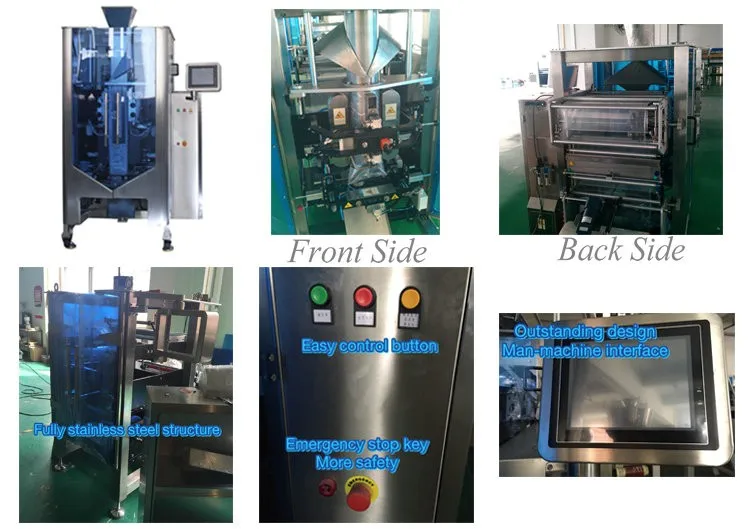

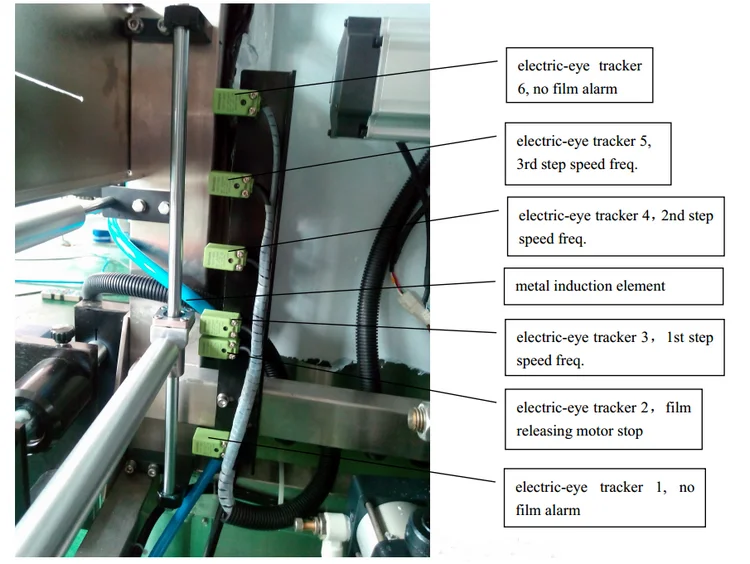

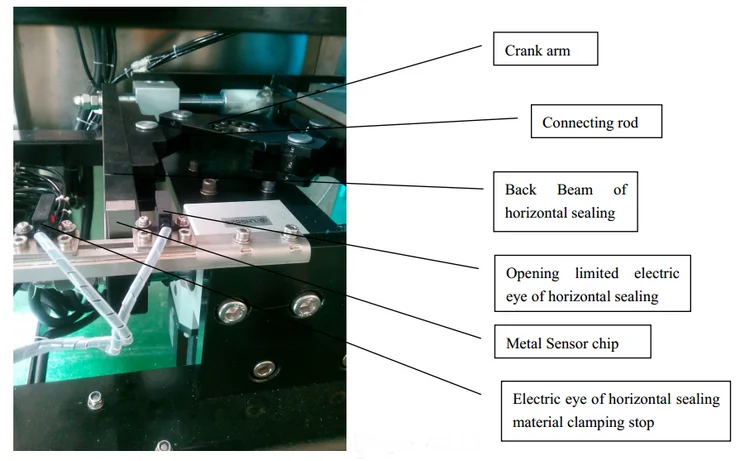

>> Machine Details

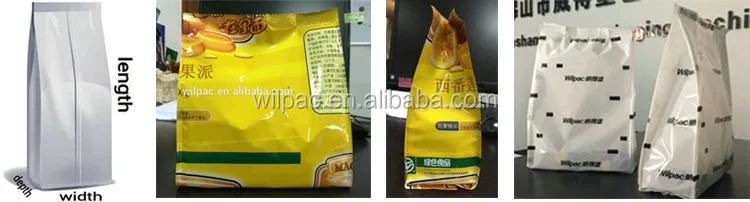

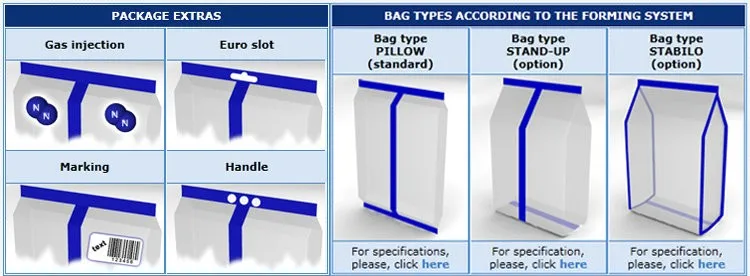

>> Bag Types

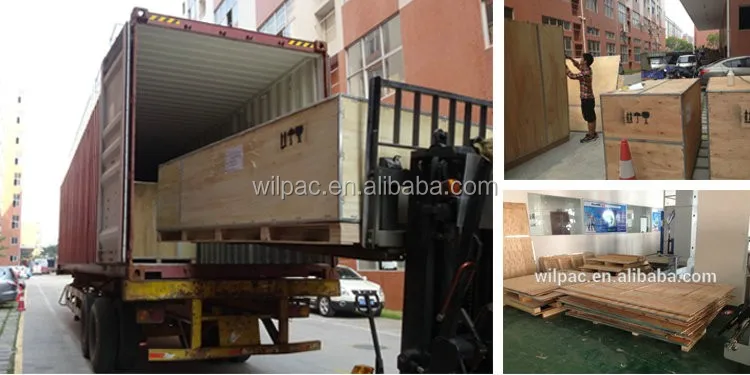

>> Wooden Package

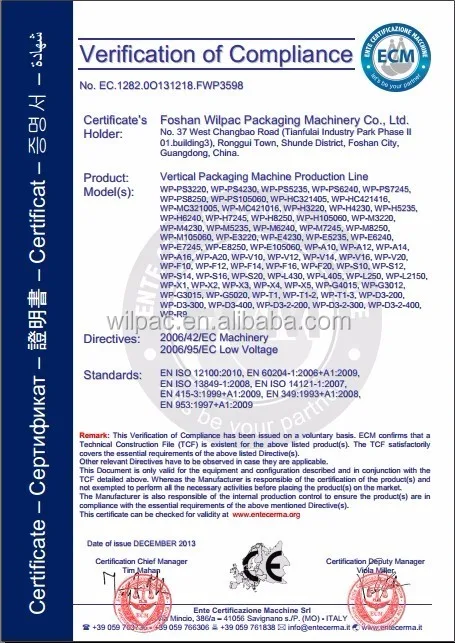

Our Certification

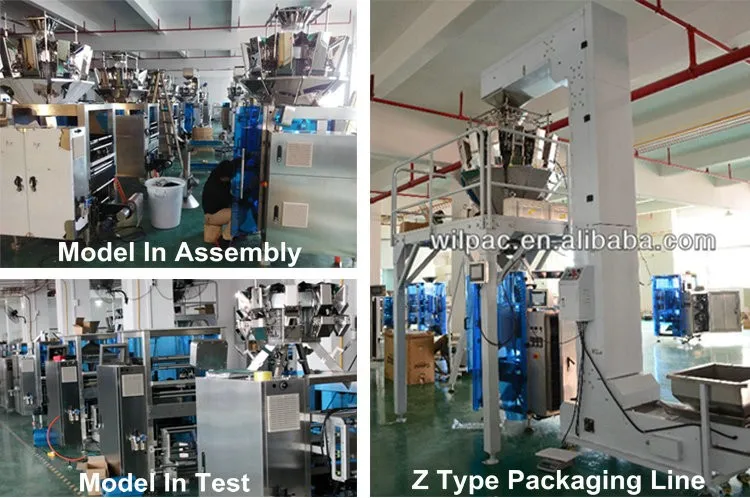

Wilpac Info

      Foshan Wilpac Packaging Machinery Co Ltd, located in Foshan. We specialized in R&D, manufacturing, marketing, and offering aftersales services for high level packaging machinery and we are dedicated to become a High Tech Enterprise in packaging machinery industry.

      We have modern standard factory, visionary venture team, skillfull R&D team and strong aftersales technical backup. We focus on the R&D of the food packaging machinery, we absorbed and advanced packaging machinery technology from overseas and made improvements and innovations. We aim at becoming benchmarking and flag bearer in dometic packaging machinery industry.

      So far, our packaging machinery is sold to Europe, America, Middle East and Southeast Asia etc. And its performance and quality is widely accepeted and praised by our customers.

We take "innovative technology, Optimal Management, Service Integrity, Market Development" as our philosophy. We adhere to the company tenet of "technology first, the market as guide, quality is fundamental, reputation is guarantee".         We aim at providing the most automated food packaging machinery and equipment to the clients from all over the world.

FAQ

Q1: Are you the factory or trading company ?
A1: We are factory, packaging machinery manufacturer, selling all around the world and models are hot sales in America, Germany, Austrial and so on, getting high appreciated from our customers.
Q2: What kinds of bags can be packed ?
A2: We have many kinds of bags, such as pillow bag, back sealing gusset bag, side sealing gusset bag, four seal bag, "M" bag, triangle bag and so on.
Q3: How about the MOQ of completed packaging machine ?
A3: 1 sets.
Q4: May i purchase the packaging machinery spare parts too ?
Q4: Sure, highly appreciated.
Q5: What is the delivery date ?
A5: If materials are in stock, delivery date is about 20-25days. If not, delivery date is about 40-50days.
Q6: Why would choose Wilpac ?
A6: We have strong R&D team and aftersales service, any questions just feel free to contact with us.


Want more details ?
Do not hesitate to contact with me.

Welcome to Wilpac !
